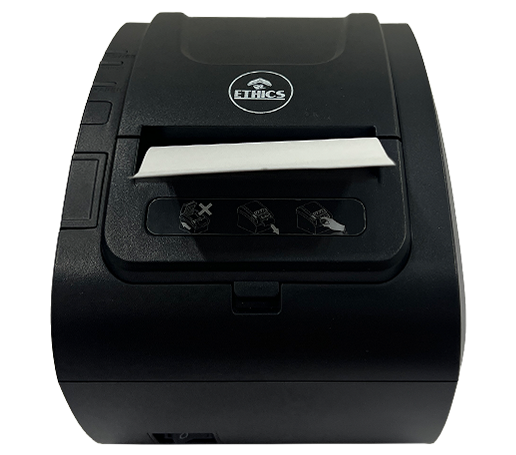

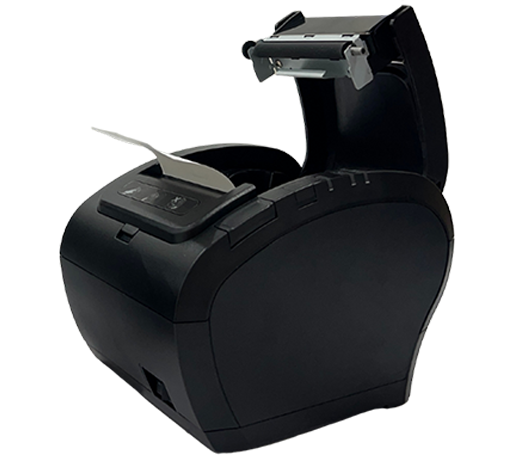

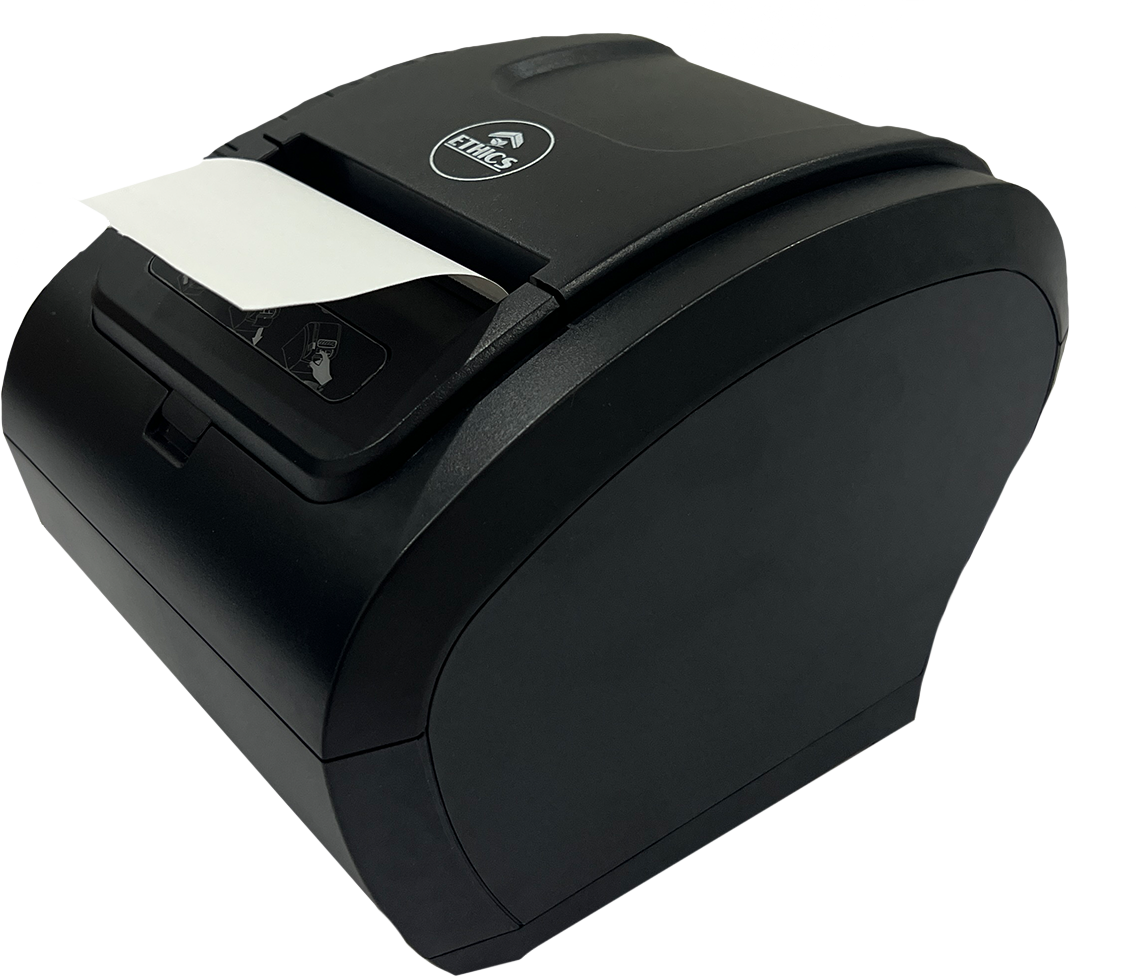

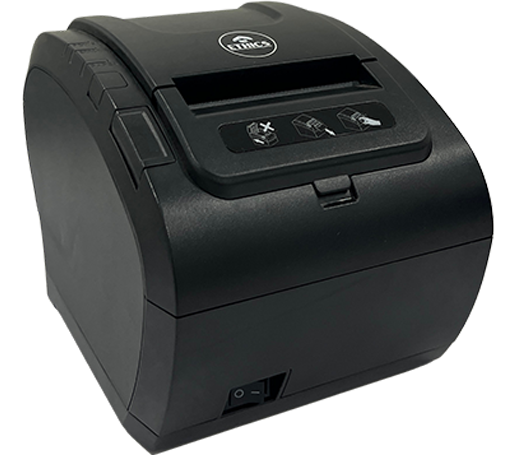

MODEL NUMBER	EIL307
PRINTING FUNCTION
Printing Method	Direct thermal printing
Printing Width	72 mm
Emulation	ESC/POS command set
Resolution	576 dots/line
Printing Speed	260mm/s(MAX)
Printing Interface	USB+LAN
Paper Cut	Manual tear and auto cut
Driver	Windows XP/Vista/Win7/Win8/Win10/Win 11 Win 2000/Win CE/OPOS/JPOS
SDK	Android & ios
PAPER TYPE
Paper Type	Thermal receipt paper
Paper roll diameter	Max. Φ80mm
Paper Thickness	0.06~0.08mm
Sensors	Paper out, cover open Cutter jam, Paper jam and black mark detection
Paper Width	48mm/52mm/56mm/64mm/68mm/ 76mm/80mm
RELIABILITY
Printing Head Life	150 Km
Auto cutter	1.5 million cuts
PHYSICAL PROPERTIES
Weight	1.8 Kg
Dimension	191(D)X146(W)X129(H) mm
Working Environment	0°C~45°C, 10%~80% RH
Storage Temperature	-10°C~60°C, 10%~90% RH
POWER SUPPLY
Input	AC 100V-240V 50/60Hz
Output	DC 24V/2.5A
BARCODE
1D	UPC-A/UPCE/JAN13(EAN13)/JAN8(EAN8)/CODE39 ITF/CODABAR/CODE93/CODE128
2D	QR Code
ACCESSORIES
Accessories	USB cable, power adaptor, power cord, Receipt roll Instruction manual, Driver CD, Paper roller
